Industry diesel generator set
SDEC Line 12-2500KVA
SDEC is the subsidiary company of Shanghai Auto Group, which is the No.1 Auto maker in China, has the joint venture with Mitsubishi for heavy duty power engines. SDEC engine feature high reliability and performance, suitable for mining, rental, telecom, construction etc applications. SDEC engine also has the excellent plateau adaptability.
Yorking diesel generator sets powered by SDEC engines are available in a range from 12kVA to 2200kVA. Yorking SDEC powered genset features strong one-step loading ability and starting ability at cold temperature. Meanwhile, the genset can be transferred between 50Hz and 60Hz.
| Genset Model | Prime | Standby | Engine | Alternator | Dimension(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | Model | Governor | Model | Silent type | ||
| Single phase | |||||||||
| YDSD13E/S-E/S/SS | 12 | 12 | 13 | 13 | 4Z2.3-G11 | M | Y164D/1P | 1800*800*1150 |  YDSD13E&S-E&S&&SS Technical Data.pdf |
| YDSD18E/S-E/S/SS | 16 | 16 | 18 | 18 | 4Z2.7-G11 | M | Y184ED/1P | 1920*850*1150 | YDSD18E&S-E&S&&SS Technical Data.pdf |
| YDSD22E/S-E/S/SS | 20 | 20 | 22 | 22 | 4Z3.0-G11 | M | Y184EF/1P | 2058*880*1150 | YDSD22E&S-E&S&&SS Technical Data.pdf |
| YDSD28E/S-E/S/SS | 25 | 25 | 28 | 28 | 4Z3.2-G11 | M | Y184G/1P | 2218*880*1150 | YDSD28E&S-E&S&&SS Technical Data.pdf |
| Three phase | |||||||||

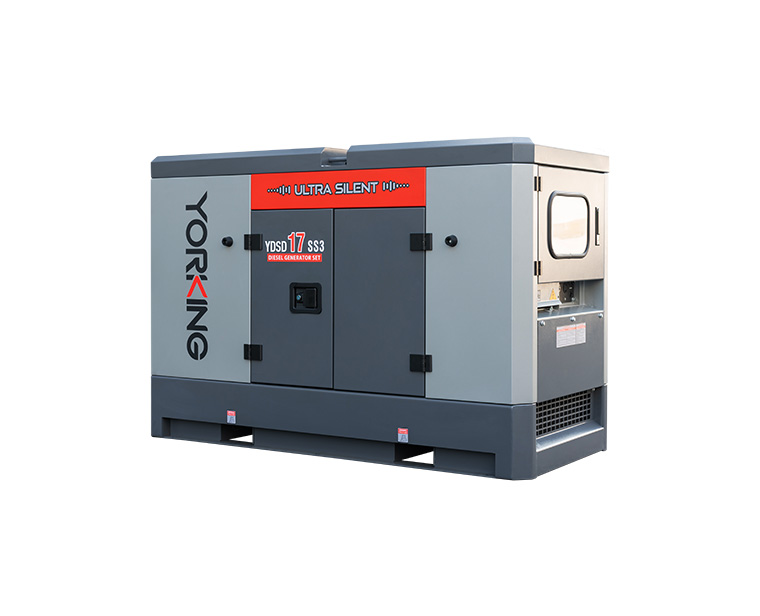

| YDSD17E3/S3-E/S3/SS3 | 15 | 12 | 16 | 13 | 4Z2.3-G11 | M | Y164D | 1800*800*1150 | YDSD17E3&S3-E&S3&&SS3 Technical Data.pdf |

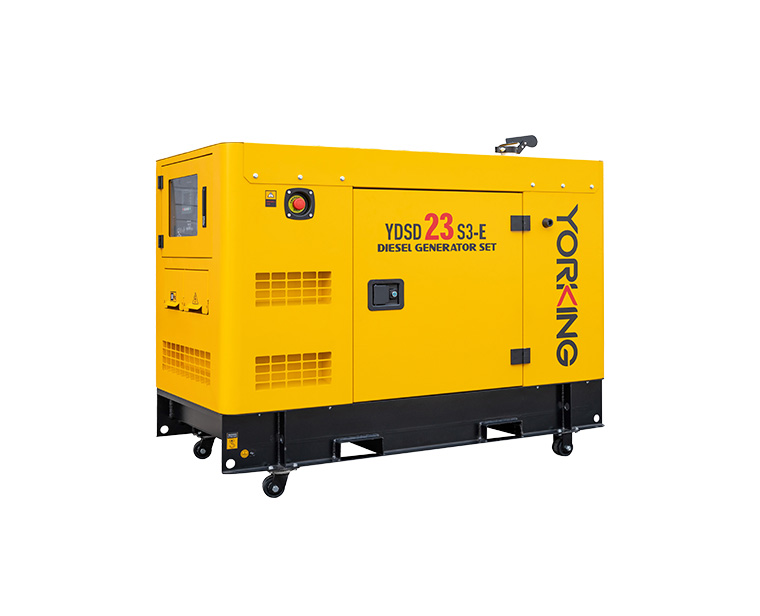

| YDSD23E3/S3-E/S3/SS3 | 20 | 16 | 23 | 18 | 4Z2.7-G11 | M | Y184ED | 1920*850*1150 | YDSD23E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD28E3/S3-E/S3/SS3 | 25 | 20 | 28 | 22 | 4Z3.0-G11 | M | Y184EF | 2058*880*1150 | YDSD28E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD34E3/S3-E/S3/SS3 | 31 | 25 | 34 | 28 | 4Z3.2-G11 | M | Y184G | 2218*880*1150 | YDSD34E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD44E3/S3-E/S3/SS3 | 40 | 32 | 44 | 35 | 4ZT3.2-G11 | M | Y184J | 2218*880*1150 | YDSD44E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD55E3/S3-E/S3/SS3 | 50 | 40 | 55 | 44 | 4ZT3.5-G21 | E | Y224D | 2520*1000*1250 | YDSD55E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD70E3/S3-E/S3/SS3 | 63 | 50 | 69 | 55 | 4ZT4.1-G21 | E | Y224E | 2520*1000*1250 | YDSD70E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD75E3/S3-E/S3/SS3 | 68 | 55 | 75 | 60 | 4ZTAA4.1-G21 | E | Y224F | 2520*1000*1250 | YDSD75E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD88E3/S3-E/S3/SS3 | 75 | 60 | 83 | 66 | 4ZTAA4.1-G22 | E | Y224G | 2520*1000*1250 | YDSD88E3&S3-E&S3&&SS3 Technical Data.pdf |
| YDSD110E3/S3 | 100 | 80 | 110 | 88 | SC4H140D2 | E | Y274C | 2660*1100*1520 | YDSD110E3&S3. Technical Data.pdf |
| YDSD125E3/S3 | 113 | 90 | 125 | 100 | SC4H160D2 | E | Y274D | 2660*1100*1520 | YDSD125E3&S3. Technical Data.pdf |
| YDSD138E3/S3 | 125 | 100 | 138 | 110 | SC4H180D2 | E | Y274DS | 2660*1100*1520 | YDSD138E3&S3. Technical Data.pdf |
| YDSD150E3/S3 | 137 | 110 | 150 | 120 | 6HTAA6.5-G21 | E | Y274E | 3150*1100*1750 | YDSD150E3&S3. Technical Data.pdf |
| YDSD165E3/S3 | 150 | 120 | 165 | 132 | SC7H205D2 | E | Y274FS | 3150*1100*1750 | YDSD165E3&S3. Technical Data.pdf |
| YDSD175E3/S3 | 163 | 130 | 175 | 140 | SC7H220D2 | E | Y274G | 3250*1100*1750 | YDSD175E3&S3. Technical Data.pdf |
| YDSD206E3/S3 | 188 | 150 | 206 | 165 | SC7H250D2 | E | Y274G | 3250*1100*1750 | YDSD206E3&S3. Technical Data.pdf |
| YDSD220E3/S3 | 200 | 160 | 220 | 180 | SC8D280D2 | E | Y274H | 3650*1280*1950 | YDSD220E3&S3. Technical Data.pdf |
| YDSD250E3/S3 | 225 | 180 | 250 | 200 | SC9D310D2 | E | Y274J | 3650*1280*1950 | YDSD250E3&S3. Technical Data.pdf |
| YDSD275E3/S3 | 250 | 200 | 275 | 220 | SC9D340D2 | E | Y274K | 3650*1280*1950 | YDSD275E3&S3. Technical Data.pdf |
| YDSD313E3/S3 | 275 | 220 | 313 | 250 | SC10E380D2 | E | Y4D | 4110*1500*2200 | YDSD313E3&S3. Technical Data.pdf |
| YDSD350E3/S3 | 313 | 250 | 350 | 280 | SC10E420D2 | E | Y4ES | 4210*1500*2200 | YDSD350E3&S3. Technical Data.pdf |
| YDSD375E3/S3 | 344 | 275 | 375 | 300 | SC10E460D2 | E | Y4FS | 4210*1500*2200 | YDSD375E3&S3. Technical Data.pdf |
| YDSD400E3/S3 | 362 | 290 | 400 | 320 | SC10E480D2 | E | Y4F | 4310*1700*2200 | YDSD400E3&S3. Technical Data.pdf |
| YDSD413E3/S3 | 375 | 300 | 413 | 330 | SC13E500D2 | E | Y4F | 4310*1700*2200 | YDSD413E3&S3. Technical Data.pdf |
| YDSD440E3/S3 | 400 | 320 | 437 | 350 | SC13E550D2 | E | Y4FG | 4310*1700*2200 | YDSD440E3&S3. Technical Data.pdf |
| YDSD500E3/S3 | 450 | 360 | 500 | 400 | 6ETAA12.8-G31 | CR | Y5C | 4310*1700*2200 | YDSD500E3&S3. Technical Data.pdf |
| YDSD550E3/S3 | 500 | 400 | 550 | 440 | 6ETAA12.8-G310 | CR | Y5D | 4310*1700*2200 | YDSD550E3&S3. Technical Data.pdf |
| YDSD625E3/S3 | 563 | 450 | 625 | 500 | SC25K778D2 | E | Y5ES | 5550*1950*2500 | YDSD625E3&S3. Technical Data.pdf |
| YDSD688E3/S3 | 625 | 500 | 688 | 550 | SC25K855D2 | E | Y5FS | 5550*1950*2500 | YDSD688E3&S3. Technical Data.pdf |
| YDSD750E3/S3 | 700 | 560 | 750 | 600 | SC25K930D2 | E | Y6B | 5700*2050*2540 | YDSD750E3&S3. Technical Data.pdf |
| YDSD825E3/S3 | 750 | 600 | 825 | 660 | SC25K990D2 | E | Y6B | 5700*2050*2540 | YDSD825E3&S3. Technical Data.pdf |
| YDSD900E3/S3 | 825 | 660 | 900 | 720 | 6KTAA25-G31 | CR | Y6B | 5700*2050*2540 | |
| YDSD1000E3/S3 | 900 | 720 | 1000 | 800 | 6KTAA25-G320 | CR | Y6D | 5900*2250*2550 | YDSD1000E3&S3. Technical Data.pdf |
| YDSD1100E3/S3 | 1000 | 800 | 1100 | 880 | 6KTAA25-G321 | CR | Y6E | 5900*2250*2550 | YDSD1100E3&S3. Technical Data.pdf |
| YDSD1688E3/S3 | 1563 | 1250 | 1687.5 | 1350 | 12KTA58-G35 | CR | LSA50.2 VL10 | ISO 40'ft HQ | YDSD1688E3&S3. Technical Data.pdf |
| YDSD1875E3/S3 | 1688 | 1350 | 1875 | 1500 | 12KTA58-G34 | CR | LSA52.3 S5 | ISO 40'ft HQ | YDSD1875E3&S3. Technical Data.pdf |
| YDSD2063E3/S3 | 1875 | 1500 | 2062.5 | 1650 | 12KTA58-G33 | CR | LSA52.3 S6 | ISO 40'ft HQ | YDSD2063E3&S3. Technical Data.pdf |
| YDSD2250E3/S3 | 2000 | 1600 | 2250 | 1800 | 12KTA58-G32 | CR | LSA52.3 S6 | ISO 40'ft HQ | YDSD2250E3&S3. Technical Data.pdf |
| YDSD2500E3/S3 | 2250 | 1800 | 2500 | 2000 | 12KTA58-G31 | CR | LSA52.3 L9 | ISO 40'ft HQ | YDSD2500E3&S3. Technical Data.pdf |
| Model | Prime | Standby | Engine | Alternator | Dimension(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | Model | Governor | Model | Silent type | ||
| Single phase | |||||||||
| YDSD19E/S/SS | 16 | 16 | 18 | 18 | 4Z2.3-G12 | M | Y164D/1P | 1800*800*1150 | YDSD19E&S&SS Technical Data.pdf |
| YDSD23E/S/SS | 20 | 20 | 22 | 22 | 4Z2.7-G12 | M | Y184E/1P | 1920*850*1150 | YDSD23E&S&SS Technical Data.pdf |
| YDSD26E/S/SS | 24 | 24 | 26 | 26 | 4Z3.0-G12 | M | Y184EF/1P | 2058*880*1150 | YDSD26E&S&SS Technical Data.pdf |
| Three phase | |||||||||
| YDSD24E3/S3/SS3 | 20 | 16 | 23 | 18 | 4Z2.3-G12 | M | Y164D | 1800*800*1150 | YDSD24E3&S3&SS3 Technical Data.pdf |
| YDSD29E3/S3/SS3 | 25 | 20 | 28 | 22 | 4Z2.7-G12 | M | Y184ED | 1920*850*1150 | YDSD29E3&S3&SS3 Technical Data.pdf |
| YDSD33E3/S3/SS3 | 30 | 24 | 33 | 26 | 4Z3.0-G12 | M | Y184EF | 2058*880*1150 | YDSD33E3&S3&SS3 Technical Data.pdf |
| YDSD45E3/S3/SS3 | 40 | 32 | 44 | 35 | 4Z3.2-G12 | M | Y184H | 2218*880*1150 | YDSD45E3&S3&SS3 Technical Data.pdf |
| YDSD48E3/S3/SS3 | 44 | 35 | 48 | 39 | 4ZT3.2-G12 | M | Y184H | 2218*880*1150 | YDSD48E3&S3&SS3 Technical Data.pdf |
| YDSD70E3/S3/SS3 | 63 | 50 | 70 | 56 | 4ZT3.5-G21 | E | Y224D | 2520*1000*1250 | YDSD70E3&S3&SS3 Technical Data.pdf |
| YDSD83E3/S3/SS3 | 75 | 60 | 83 | 66 | 4ZT4.1-G21 | E | Y224E | 2520*1000*1250 | YDSD83E3&S3&SS3 Technical Data.pdf |
| YDSD88E3/S3/SS3 | 80 | 64 | 88 | 70 | 4ZTAA4.1-G21 | E | Y224F | 2520*1000*1250 | YDSD88E3&S3&SS3 Technical Data.pdf |
| YDSD100E3/S3/SS3 | 90 | 72 | 100 | 80 | 4ZTAA4.1-G22 | E | Y224F | 2520*1000*1250 | YDSD100E3&S3&SS3 Technical Data.pdf |
| YDSD126E3/S3 | 113 | 90 | 125 | 100 | 4HTAA4.3-G21 | E | Y274CS | 2660*1100*1520 | YDSD126E3&S3 Technical Data.pdf |
| YDSD140E3/S3 | 125 | 100 | 140 | 112 | 4HTAA4.3-G23 | E | Y274D | 2660*1100*1520 | YDSD140E3&S3 Technical Data.pdf |
| YDSD165E3/S3 | 150 | 120 | 165 | 132 | 6HTAA6.5-G21 | E | Y274DS | 3150*1100*1750 | YDSD165E3&S3 Technical Data.pdf |
| YDSD180E3/S3 | 160 | 128 | 175 | 140 | 6HTAA6.5-G22 | E | Y274E | 3250*1100*1750 | YDSD180E3&S3 Technical Data.pdf |
| YDSD220E3/S3 | 200 | 160 | 220 | 176 | 6HTAA6.5-G23 | E | Y274G | 3250*1100*1750 | YDSD220E3&S3 Technical Data.pdf |
| YDSD250E3/S3 | 225 | 180 | 250 | 200 | 6DTAA8.9-G21 | E | Y274G | 3650*1220*1950 | YDSD250E3&S3 Technical Data.pdf |
| YDSD275E3/S3 | 250 | 200 | 275 | 220 | 6DTAA8.9-G24 | E | Y274J | 3650*1220*1950 | YDSD275E3&S3 Technical Data.pdf |
| YDSD313E3/S3 | 275 | 220 | 313 | 250 | 6DTAA8.9-G23 | E | Y274J | 3650*1280*1950 | YDSD313E3&S3 Technical Data.pdf |
| YDSD375E3/S3 | 350 | 280 | 375 | 300 | 6ETAA11.8-G22 | E | Y4D | 4210*1500*2200 | YDSD375E3&S3 Technical Data.pdf |
| YDSD437E3/S3 | 400 | 320 | 437 | 350 | 6ETAA12.8-G22 | E | Y4FS | 4310*1700*2200 | YDSD437E3&S3 Technical Data.pdf |
| YDSD500E3/S3 | 450 | 360 | 500 | 400 | 6ETAA12.8-G32 | CR | Y4F | 4310*1700*2200 | YDSD500E3&S3 Technical Data.pdf |
| YDSD550E3/S3 | 500 | 400 | 550 | 440 | 6ETAA12.8-G310.1 | CR | Y5C | 4310*1700*2200 | YDSD550E3&S3 Technical Data.pdf |
| YDSD619E3/S3 | 563 | 450 | 619 | 495 | 6KTAA25-G311 | EUP | Y5D | 5550*1950*2500 | YDSD619E3&S3 Technical Data.pdf |
| YDSD688E3/S3 | 625 | 500 | 688 | 550 | 6KTAA25-G310 | EUP | Y5ES | 5550*1950*2500 | YDSD688E3&S3 Technical Data.pdf |
| YDSD770E3/S3 | 700 | 560 | 770 | 616 | 6KTAA25-G39 | EUP | Y5E | 5700*2050*2540 | YDSD770E3&S3 Technical Data.pdf |
| YDSD825E3/S3 | 750 | 600 | 825 | 660 | 6KTAA25-G32.1 | CR | Y5FS | 5700*2050*2540 | YDSD825E3&S3 Technical Data.pdf |
| YDSD908E3/S3 | 825 | 660 | 908 | 726 | 6KTAA25-G31.1 | CR | Y6B | 5700*2050*2540 | YDSD908E3&S3 Technical Data.pdf |
| YDSD990E3/S3 | 900 | 720 | 990 | 792 | 6KTAA25-G320.1 | CR | Y6C | 5900*2250*2550 | YDSD990E3&S3 Technical Data.pdf |
| YDSD1100E3/S3 | 1000 | 800 | 1100 | 880 | 6KTAA25-G321.1 | CR | Y6D | 5900*2250*2550 | YDSD1100E3&S3 Technical Data.pdf |
