Industry diesel generator set
FAWDE Line 12-440kVA
FAWDE, a division of FAW Jiefang Automotive Co., Ltd., boasts over 60 years of experience in diesel engine manufacturing. Known for its high performance, low emissions, and exceptional reliability, FAWDE engines are extensively used in trucks and off-road equipment. Yorking diesel generator sets powered by FAWDE engines range from 12-440kVA, tailored for industrial, construction, and emergency backup power applications. Yorking FAWDE powered generator sets deliver stable and reliable power across a range of challenging environments, meeting diverse user needs.
| Genset Model | Prime | Standby | Engine | Alternator | Dimension(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | Model | Governor | Model | Silent type | ||
| Single phase | |||||||||
| YDW13E/S-E/S | 12 | 12 | 13 | 13 | 4DW81-23D | M | Y164D/1P | 1760*850*1150 |  YDW13E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW18E/S-E/S | 16 | 16 | 18 | 18 | 4DW91-29D | M | Y184ED/1P | 1890*900*1150 | YDW18E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW22E/S-E/S | 20 | 20 | 22 | 22 | 4DW92-35D | M | Y184EF/1P | 1950*900*1150 | YDW22E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW26E/S-E/S | 24 | 24 | 26 | 26 | 4DW92-39D | M | Y184G/1P | 2270*900*1150 | YDW26E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| Three phase | |||||||||
| YDW17E3/S-E3/S3 | 15 | 12 | 17 | 13 | 4DW81-23D | M | Y164D | 1760*850*1150 | YDW17E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW22E3/S-E3/S3 | 20 | 16 | 22 | 18 | 4DW91-29D | M | Y184ED | 1890*900*1150 | YDW22E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW28E3/S-E3/S3 | 25 | 20 | 28 | 22 | 4DW92-35D | M | Y184EF | 1950*900*1150 | YDW28E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW33E3/S-E3/S3 | 30 | 24 | 33 | 26 | 4DW92-39D | M | Y184G | 1950*900*1150 | YDW33E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW44E3/S-E3/S3 | 40 | 32 | 44 | 35 | 4DX21-53D | M | Y184J | 2300*980*1200 | YDW44E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW55E3/S-E3/S3 | 50 | 40 | 55 | 44 | 4DX22-65D | M | Y224D | 2300*980*1200 | YDW55E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW66E3/S-E3/S3 | 60 | 48 | 66 | 53 | 4DX23-78D | M | Y224E | 2450*980*1200 | YDW66E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW75E3/S-E3/S3 | 68 | 54 | 75 | 59 | 4110/125Z-09D | E | Y224F | 2520*1050*1390 | YDW75E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW100E3/S-E3/S3 | 90 | 72 | 100 | 80 | CA4DF2-12D | E | Y274CS | 2610*1100*1440 | YDW100E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW110E3/S3 | 100 | 80 | 110 | 88 | CA6DF2D-14D | E | Y274C | 2950*1100*1700 | YDW110E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW138E3/S3 | 125 | 100 | 138 | 110 | CA6DF2-17D | E | Y274DS | 2950*1100*1700 | YDW138E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW165E3/S3 | 150 | 120 | 165 | 132 | CA6DF2-19D | E | Y274FS | 3150*1130*1750 | YDW165E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW206E3/S3 | 188 | 150 | 206 | 165 | CA6DL1-24D | E | Y274G | 3650*1220*1950 | YDW206E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW248E3/S3 | 225 | 180 | 248 | 198 | CA6DL2-27D | E | Y274J | 3650*1220*1950 | YDW248E3&S3 Technical Data-FAWDE-Yorking.pdf |

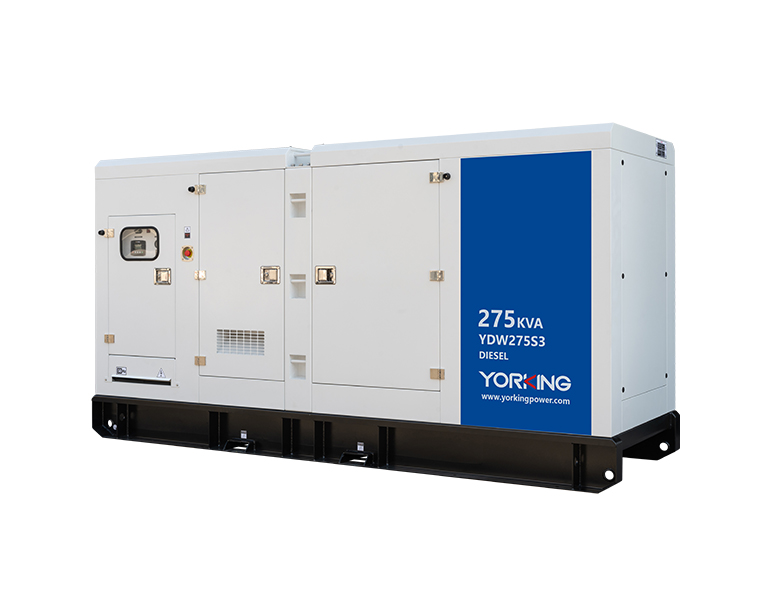

| YDW275E3/S3 | 250 | 200 | 275 | 220 | CA6DL2-30 | E | Y274K | 3650*1220*1950 | YDW275E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW344E3/S3 | 313 | 250 | 344 | 275 | CA6DM2J-39D | E | Y4ES | 4000*1450*2150 | YDW344E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW371E3/S3 | 338 | 270 | 371 | 297 | CA6DM2J-41D | E | Y4FS | 4000*1450*2150 | YDW371E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW413E3/S3 | 375 | 300 | 413 | 330 | CA6DM3J-48D | E | Y4F | 4140*1500*2200 | YDW413E3&S3 Technical Data-FAWDE-Yorking.pdf |
| Genset Model | Prime | Standby | Engine | Alternator | Dimension(LxWxH)(MM) | ||||
| kVA | kW | kVA | kW | Model | Governor | Model | Silent type | ||
| Single phase | |||||||||
| YDW17E/S-E/S | 15 | 15 | 17 | 17 | 4DW81-28D | M | Y164D/1P | 1760*850*1150 | YDW17E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW24E/S-E/S | 22 | 22 | 24 | 24 | 4DW91-38D | M | Y184ED/1P | 1890*900*1150 | YDW24E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW28E/S-E/S | 25 | 25 | 28 | 28 | 4DW92-42D | M | Y184EF/1P | 1950*900*1150 | YDW28E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| YDW33E/S-E/S | 30 | 30 | 33 | 33 | 4DW93-50D | M | Y184G/1P | 2270*900*1150 | YDW33E&S&S-E Technical Data-FAWDE-Yorking.pdf |
| Three phase | |||||||||
| YDW22E3/S-E3/S3 | 19 | 15 | 22 | 17 | 4DW81-28D | M | Y164D | 1760*850*1150 | YDW22E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW30E3/S-E3/S3 | 27 | 22 | 30 | 24 | 4DW91-38D | M | Y184ED | 1890*900*1150 | YDW30E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW34E3/S-E3/S3 | 31 | 25 | 34 | 28 | 4DW92-42D | M | Y184EF | 1950*900*1150 | YDW34E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW41E3/S-E3/S3 | 37 | 30 | 41 | 33 | 4DW93-50D | M | Y184G | 1950*900*1150 | YDW41E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW50E3/S-E3/S3 | 45 | 36 | 50 | 40 | 4DX21-61D | M | Y184H | 2300*980*1200 | YDW50E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW62E3/S-E3/S3 | 56 | 45 | 62 | 50 | 4DX22-75D | M | Y224DS | 2300*980*1200 | YDW62E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW76E3/S-E3/S3 | 69 | 55 | 76 | 60 | 4DX23-90D | M | Y224E | 2450*980*1200 | YDW76E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW90E3/S-E3/S3 | 81 | 65 | 90 | 72 | 4110/125Z-11D | E | Y224F | 2520*1050*1390 | YDW90E3&S3&S3-E Technical Data-FAWDE-Yorking.pdf |
| YDW118E3/S3 | 106 | 85 | 118 | 94 | CA4DF2-14D | E | Y274C | 2610*1100*1440 | YDW118E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW131E3/S3 | 119 | 95 | 131 | 105 | CA6DF2D-16D | E | Y274C | 2950*1100*1700 | YDW131E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW152E3/S3 | 138 | 110 | 152 | 121 | CA6DF2-18D | E | Y274D | 2950*1100*1700 | YDW152E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW179E3/S3 | 163 | 130 | 179 | 143 | CA6DF2-21D | E | Y274E | 3150*1130*1750 | YDW179E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW227E3/S3 | 206 | 165 | 227 | 182 | CA6DL1-27D | E | Y274G | 3650*1220*1950 | YDW227E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW275E3/S3 | 250 | 200 | 275 | 220 | CA6DL2-32D | E | Y274J | 3650*1220*1950 | YDW275E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW371E3/S3 | 338 | 270 | 371 | 297 | CA6DM2J-42D | E | Y4D | 4000*1450*2150 | YDW371E3&S3 Technical Data-FAWDE-Yorking.pdf |
| YDW440E3/S3 | 400 | 320 | 440 | 352 | CA6DM3J-49D | E | Y4FS | 4140*1500*2200 | YDW440E3&S3 Technical Data-FAWDE-Yorking.pdf |
