Water Pump

Draining & Generating Set

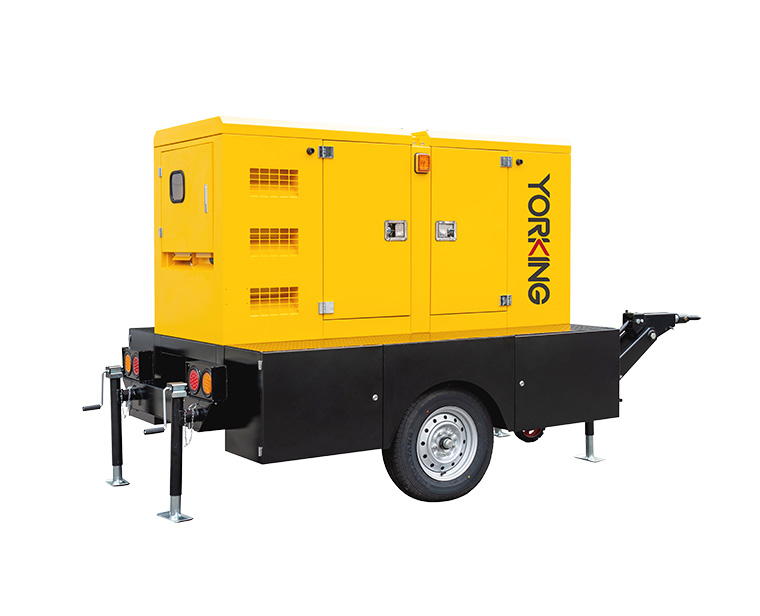

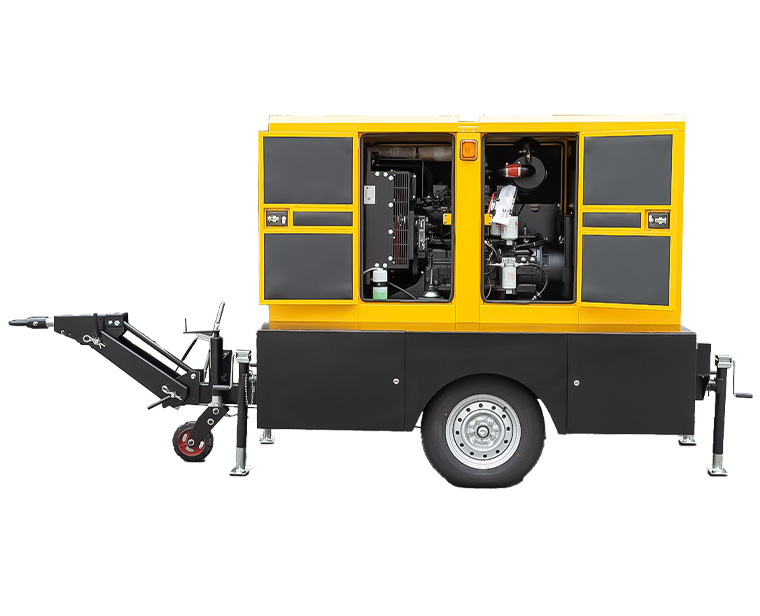

Towed drainage unit


Yorking towed drainage unit features draining and power generaing functions. As water pump, it feautres large flow, high-lift performance.



Features and Benefits


Silent type genset canopy with anti-rust treatment.
Available with traffic sign & collision brake function.
Rapid, safe and reliable. Each set is equipped with leakage and short circuit protection.
Available with over-voltage, over-current, under-voltage, under-current, and phase loss protection.
Generator, engine and unit base are equipped with shock-absorbing rubber pads.
The unit can be applied as mobile generator set.



Application


Flood control and drought relief, fire water intake, urban waterlogging, subway drainage emergency, multi-purpose water transfer, municipal construction drainage, interchange area drainage, underground garage drainage and other complex working conditions.

Model 　 YDPB400-8S YDPB800-8S YDPB500-10S YDPB1000-10S YDPH130-30S YDPH260-30S YDPH400-30S YDPH800-30S YDPS250-20S YDPS500-20S
PUMP DATA　　　　　　　　　　　
Model 　 PB400-8 PB400-8 PB500-10 PB1000-10 PH130-30 PH130-30 PH400-30 PH400-30 PS250-20 PS250-20
Suction/Outlet Pipe Diameter mm 200 200 200 200 150 150 200 200 150 150
Pump qty pc 1 2 1 2 1 2 1 2 1 2
Flow  m³/hr 400 800 500 1000 130 260 400 800 250 500
Total Head  m 8 8 10 10 30 30 30 30 20 20
Rated Power kW 15 15 22 22 18.5 18.5 50 50 22 22
INVERTER DATA　　　　　　　　　　　
Inverter Power kW 18.5 18.5 30 30 22 22 55 55 30 30
Quantity 　 1 2 1 2 1 2 1 2 1 2
GENERATOR DATA　　　　　　　　　　　
Rated Output 　 20kW/25kVA 40kW/50kVA 25kW/31kVA 52kW/65kVA 25kW/31kVA 45kW/56kVA 64kW/80kVA 120kW/150kVA 25kW/31kVA 52kW/65kVA
Generator Dimension (L*W*H) mm 2058*930*1150 2300*1050*1300 2058*930*1150 2440*1050*1360 2058*930*1150 2440*1050*1360 2440*1050*1360 2960*1130*1650 2058*930*1150 2440*1050*1360
Rated Engine Power @1500rpm kW 27 49 32 64 32 60 78 138 32 64
TRAILER DATA　　　　　　　　　　　
Trailer Dimension (L*W*H) mm 4150*1770*2038 4400*1840*2038 4300*1770*2039 4900*1900*2200 4150*1770*2038 4400*1840*2038 5150*1900*2200 5950*1950*2350 4300*1770*2039 4900*1900*2200
Model YDPB400-8C YDPB800-8C YDPB500-10C YDPB1000-10C YDPH130-30C YDPH260-30C YDPH400-30C YDPH800-30C YDPS250-20C YDPS500-20C
PUMP DATA
Model 　 PB400-8 PB400-8 PB500-10 PB1000-10 PH130-30 PH130-30 PH400-30 PH400-30 PS250-20 PS250-20
Suction/Outlet Pipe Diameter mm 200 200 200 200 150 150 200 200 150 150
Pump qty pc 1 2 1 2 1 2 1 2 1 2
Flow  m³/hr 400 800 500 1000 130 260 400 800 250 500
Total Head  m 8 8 10 10 30 30 30 30 20 20
Rated power kw 15 15 22 22 18.5 18.5 50 50 22 22
Pump dimension mm 300*300*600 300*300*600 385*385*600 385*385*600 ￠340*600 ￠340*600 ￠360*720 ￠360*720 385*385*600 385*385*600
INVERTER DATA
Inverter power kw 18.5 18.5 30 30 22 22 55 55 30 30
Quantity 　 1 2 1 2 1 2 1 2 1 2
GENERATOR DATA
Generator Model (silent type) 　 YDDC28S3-T YDDC55S3 YDDC34S3-T YDDC72S3 YDDC34S3-T YDDC62S3 YDDC88S3-T YDDC165S3 YDDC34S3-T YDDC72S3
Rated Output 　 20kW/25kVA 40kW/50kVA 25kW/31kVA 52kW/65kVA 25kW/31kVA 45kW/56kVA 64kW/80kVA 120kW/150kVA 25kW/31kVA 52kW/65kVA
Generator Dimension (L*W*H) mm 2250*970*1350 2450*1020*1450 2250*970*1350 2450*1020*1450 2250*970*1350 2450*1020*1450 2500*1020*1450 2900*1070*1580 2250*970*1350 2450*1020*1450
ENGINE DATA
Engine Brand 　 Cummins Cummins Cummins Cummins Cummins Cummins Cummins Cummins Cummins Cummins
Rated Engine Power @1500rpm kw 24 50 27 58 27 50 70 140 27 58
TRAILER DATA
Trailer Dimension (L*W*H) mm 4150*1770*2038 4400*1840*2038 4300*1770*2039 4900*1900*2200 4150*1770*2038 4400*1840*2038 5150*1900*2200 5950*1950*2350 4300*1770*2039 4900*1900*2200
