Water Pump

Trailer Type Pump

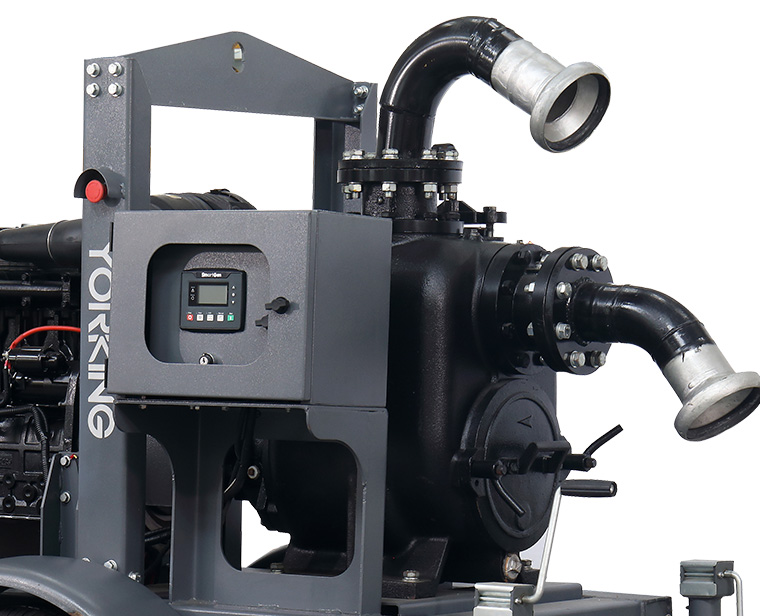

Yorking self-priming pump features non-clogging. There’s a solid drain port in the front of pump for easier removing the heavy solid or debris.

The pump is suitable for handling the non-inflammable and non-explosive liquid, rain and normal trash water. One pump suitable for multiple applications. The pump fit for municipal engineering, sewage project, construction industry and other sewage treatment applications.

MODEL 　 YDPZX150-25ET YDPZX320-28ET YDPZX600-35ET YDPZX750-38ET
PUMP DATA　　　　　
Suction/Outlet Pipe Diameter 　 4”x4”(100mmx100mm) 6”x6”(150mmx150mm) 8”x8”(200mmx200mm) 10”x10”(250mmx250mm)
Flow                                    m³/hr 48~150 120~300 200~600 300~750
Max Suction Lift                        m ≤7m ≤7m ≤7m ≤7m
Total Head                               m 25~12 28~13 35~23 38~24
Max Temperature of Liquid Pumped   ℃ ≤40  ≤40  ≤40  ≤40
Solid Handling  mm/inch 75mm/3" 75mm/3" 75mm/3" 75mm/3"
Operating Speed rpm 1450-1550 1450-1550 1450-1550 1450-1550
Pump Body   Cast iron Cast iron Cast iron Cast iron
ENGINE DATA　　　　　
Power                           kW ≥20 ≥36 ≥90 ≥105
Fuel Tank Capacity   100 100 200 200
Emergency Stop   Yes Yes Yes Yes
Fault Alarm   Yes Yes Yes Yes
DIMENSIION&WEIGHT　　　　
Trailer Type
Dimension (L*W*H) mm 3300*1500*1550 3300*1500*1550 3600*1700*2100 4000*1700*2100
Net weight kg 1100 1300 2000 2300



MODEL YDPZX150-25ST YDPZX320-28ST YDPZX600-35ST YDPZX750-38ST
PUMP DATA
Suction/Outlet Pipe Diameter 　 4”x4”(100mmx100mm) 6”x6”(150mmx150mm) 8”x8”(200mmx200mm) 10”x10”(250mmx250mm)
Flow                                     m³/hr 48~150 120~300 200~600 300~750
Max Suction Lift  m ≤7 ≤7 ≤7 ≤7
Total Head m 25~12 28~13 35~23 38~24
Max Temperature of Liquid Pumped ℃ ≤40  ≤40  ≤40  ≤40
Solid Handling    75mm/3" 75mm/3" 75mm/3" 75mm/3"
Operating Speed   1450-1550 1450-1550 1450-1550 1450-1550
Pump Body   Cast iron Cast iron Cast iron Cast iron
ENGINE DATA
Power  kW ≥20 ≥36 ≥90 ≥105
Fuel Tank Capacity L 100 100 200 250
Brand 　 Smartgen Smartgen Smartgen Smartgen
Model 　 HGM4020N HGM4020N HGM4020N HGM4020N
Monitoring Data

Speed, oil pressure,

water Temperature, fuel Level

Speed, oil pressure,

water Temperature, fuel Level

Speed, oil pressure,

water Temperature, fuel Level

Speed, oil pressure,

water Temperature, fuel Level
Emergency Stop   Yes Yes Yes Yes
Fault Alarm   Yes Yes Yes Yes
DIMENSIION&WEIGHT
Canopy Type
Dimension (LXWXH) mm 3300*1500*2200 3300*1500*2200 3600*1700*2300 4000*1700*2300
Net Weight  kg 1200 1400 2200 2500
ITEM YDPMF500-10AT YDPMF150-35AT YDPMF1000-10MT YDPMF300-35MT YDPMF1000-10AT YDPMF400-25AT
GENSET POWER
Prime Power kW　 30 30 50 50 50 50
Prime Power kVA 37.5 37.5 62.5 62.5 62.5 62.5
Standby Power kW 33 33 55 55 55 55
Standby Power kVA 41.25 41.25 68 68 68 68
PUMP DATA
Total Flow m3/h　 500 150 1000 300 1000 400
Total Head m 10 35 10 35 10 25
Submersible Pump power kW 　 22 22 22 22 45 45
 Single Pump Flow m3/h 500 150 500 150 1000 400
Suction/Outlet Pipe Diameter mm 200 200 200 200 300 200
Submersible Pump Qty   1 1 2 2 1 1
OTHERS
Braking System   Crash brake and parking handbrake Crash brake and parking handbrake Crash brake and parking handbrake Crash brake and parking handbrake Crash brake and parking handbrake Crash brake and parking handbrake
Lighting System
(Can Only Rotate&Tilt; Cannot Raise/Lower）		   100W LED*1 100W LED*1 100W LED*1 100W LED*1 100W LED*1 100W LED*1
Dimension (LXWXH)  mm 3900*1950*2400 3900*1950*2400 4500*1950*2500 4500*1950*2500 4500*1950*2500 4500*1950*2500
Fuel Tank Capacity L 200 200 300 300 300 300
Net Weight  kg 1800 1800 2300 2300 2300 2300
