Vehicle Generator

Yorking vehicle genset is designed for miscellaneous special applications in vehicle industry to meet the power demand of various vehicle modification.

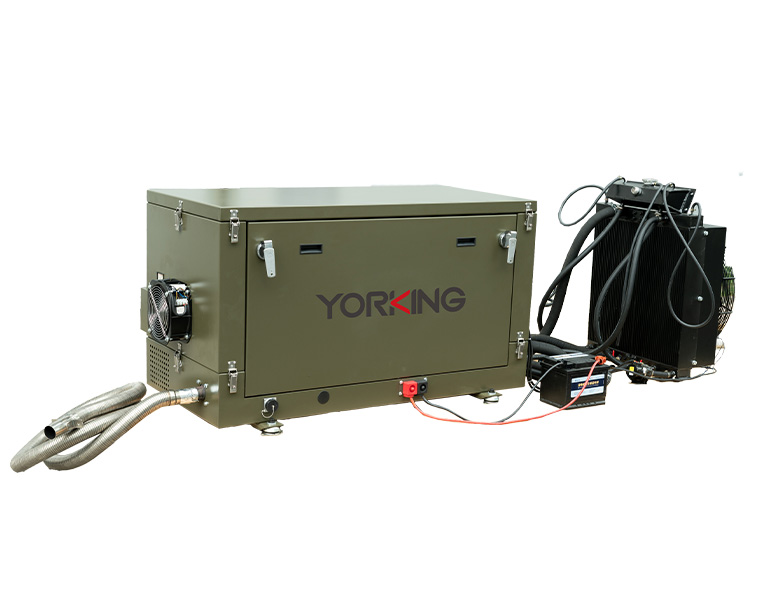

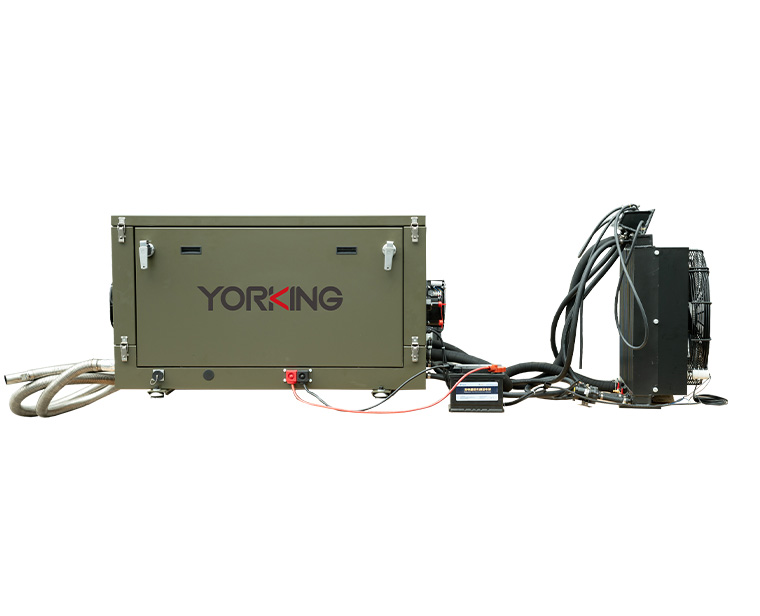

Based on the installation space, the radiator can be integrated inside genset canopy or split from genset. The gensets feature compact size, light weight, super low noise, and flexible installation etc., covering the power range from 8KW to 40KW.
Normally the installation space in vehicle is quite limited with less air flow, but the noise level must be very low to guarantee passengers or driver inside vehicle a comfortable environment. It’s a high challenge for diesel generator set manufactures.
Yorking provide customized ultra silent mobile power solution for these applications .

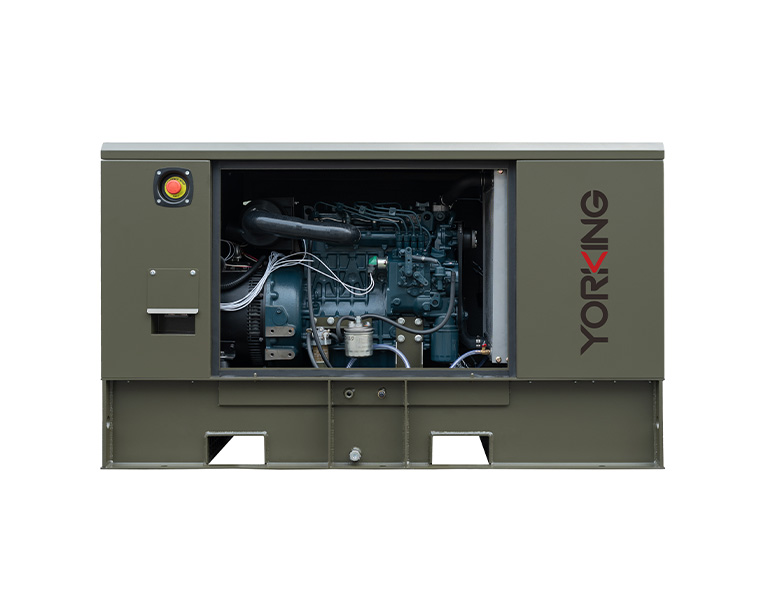

Yorking vehicle gensets apply detachable service doors, which are convenient for quick access to oil ruler, oil filter, oil refilling port, radiator tank, battery, and air filter etc.

Model	Generator Set								Radiator(External)
	Prime		Standby		Engine	Noise Level	Dimension	Weight	Dimension
	kVA	kW	kVA	kW	Speed	dB(A)/1m/3m//7m	(LWH )(mm)	kg	(LWH )(mm)
60Hz
YDE11V	10	10	11	11	1800rpm	70/65/55	1400×680×780	480	630×520×250
YDE13V	12	12	13	13	1800rpm	70/65/55	1400×680×780	480	680×570×270
YDE15V	14	14	15	15	1800rpm	70/65/55	1400×680×780	500	680×570×270
YDE19V	17	17	19	19	1800rpm	70/65/55	1400×680×780	520	720×620×290
YDE26V	24	24	26	26	1800rpm	70/65/55	1400×680×780	530	770×670×290
YDYM41V	30	30	33	33	1500rpm	70/65/55	1370×770×835	600	770×670×290

Model	Prime		Standby		Phase	Engine	Noise Level	Dimension	Weight
Model	kVA	kW	kVA	kW	Phase	Speed	dB(A)/1m/3m//7m	(LWH )(mm)	kg
50Hz
YDKT11V	10	10	11	11	Single	1500rpm	70/65/55	1550×650×900	550
YDKT13V3	12	10	13	11	Three	1500rpm	70/65/55	1550×650×900	550
YDKT13V	12	12	13	13	Single	3000rpm	74/69/59	1550×650×900	600
YDKT16V3	15	12	16	13	Three	3000rpm	74/69/59	1550×650×900	600
YDKT17V	15	15	17	17	Single	3000rpm	74/69/59	1550×750×1050	660
YDKT21V3	19	15	21	17	Three	3000rpm	74/69/59	1550×750×1050	660
YDKT21V	24	19	21	21	Single	1500rpm	70/65/55	1900×900×1150	780
YDKT26V3	15	19	26	21	Three	1500rpm	70/65/55	1900×900×1150	780
YDKT28V	25	25	28	28	Single	1500rpm	70/65/55	1900×900×1150	850
YDKT35V3	31	25	35	28	Three	1500rpm	70/65/55	1900×900×1150	850
60Hz
YDKT12V	11	11	12	12	Single	1800rpm	70/65/55	1550×650×900	550
YDKT15V3	13	11	15	12	Three	1800rpm	70/65/55	1550×650×900	550
YDKT15V	14	14	15	15	Single	1800rpm	70/65/55	1550×650×900	600
YDKT19V3	17	14	19	15	Three	1800rpm	70/65/55	1550×650×900	600
YDKT20V	18	18	20	20	Single	1800rpm	70/65/55	1550×750×1050	660
YDKT25V3	22	18	25	20	Three	1800rpm	70/65/55	1550×750×1050	660
YDKT26V	24	24	26	26	Single	1800rpm	70/65/55	1900×900×1150	780
YDKT28V3	24	24	28	22	Three	1800rpm	70/65/55	1900×900×1150	780
YDKT31V	28	28	31	31	Single	1800rpm	70/65/55	1900×900×1150	870
YDKT39V3	35	28	39	31	Three	1800rpm	70/65/55	1900×900×1150	870

Model	Prime		Standby		Phase	Engine	Noise Level	Dimension	Weight
Model	kVA	kW	kVA	kW	Phase	Speed	dB(A)/1m/3m//7m	(LWH )(mm)	kg
50Hz
YDYM10V	9	9	10	10	Single	1500rpm	70/65/55	1550×650×900	550
YDYM12V3	11	9	12	10	Three	1500rpm	70/65/55	1550×650×900	550
YDYM12V	11	11	12	12	Single	3000rpm	74/69/59	1550×650×900	600
YDYM15V3	14	11	15	12	Three	3000rpm	74/69/59	1550×650×900	600
YDYM15V	14	14	15	15	Single	3000rpm	74/69/59	1550×750×1050	660
YDYM20V3	18	14	20	15	Three	3000rpm	74/69/59	1550×750×1050	660
YDYM25V	23	23	25	25	Single	1500rpm	70/65/55	1900×900×1150	800
YDYM31V3	29	23	31	25	Three	1500rpm	70/65/55	1900×900×1150	800
YDYM28V	28	28	31	31	Single	1500rpm	70/65/55	1900×900×1150	900
YDYM39V3	35	28	39	31	Three	1500rpm	70/65/55	1900×900×1150	900
60Hz
YDYM12V	11	11	12	12	Single	1800rpm	70/65/55	1550×650×900	550
YDYM15V3	13	11	15	12	Three	1800rpm	70/65/55	1550×650×900	550
YDYM14V	13	13	14	14	Single	1800rpm	70/65/55	1550×650×900	600
YDYM18V3	16	13	18	14	Three	1800rpm	70/65/55	1550×650×900	600
YDYM20V	18	18	20	20	Single	1800rpm	70/65/55	1550×750×1050	660
YDYM25V3	22	18	25	20	Three	1800rpm	70/65/55	1550×750×1050	660
YDYM26V	27	27	30	30	Single	1800rpm	70/65/55	1900×900×1150	800
YDYM37V3	34	27	37	30	Three	1800rpm	70/65/55	1900×900×1150	800
YDYM37V	34	34	37	37	Single	1800rpm	70/65/55	1900×900×1150	900
YDYM46V3	42	34	46	37	Three	1800rpm	70/65/55	1900×900×1150	900

Model	Prime		Standby		Phase	Engine	Noise Level	Dimension	Weight
Model	kVA	kW	kVA	kW	Phase	Speed	dB(A)/1m/3m//7m	(LWH )(mm)	kg
50Hz
YDSD9V	8	8	9	9	Single	1500rpm	70/65/55	1400×750×950	540
YDSD11V3	10	8	11	9	Three	1500rpm	70/65/55	1400×750×950	550
YDSD13V	12	12	13	13	Single	3000rpm	74/69/59	1400×750×950	560
YDSD16V3	15	12	16	13	Three	3000rpm	74/69/59	1400×750×950	570
YDSD18V	16	16	18	18	Single	3000rpm	74/69/59	1400×750×950	580
YDSD22V3	19	16	22	18	Three	3000rpm	74/69/59	1400×750×950	590
YDSD13V	12	12	13	13	Single	1500rpm	70/65/55	1750×800×1050	650
YDSD16V3	15	12	16	13	Three	1500rpm	70/65/55	1750×800×1050	660
YDSD18V	16	16	18	18	Single	1500rpm	70/65/55	1750×800×1050	680
YDSD22V3	19	16	22	18	Three	1500rpm	70/65/55	1750×800×1050	690
YDSD22V	20	20	22	22	Single	1500rpm	70/65/55	1750×800×1050	700
YDSD28V3	24	20	28	22	Three	1500rpm	70/65/55	1750×800×1050	720
YDSD28V	25	25	28	28	Single	1500rpm	70/65/55	1900×800×1050	830
YDSD35V3	31	25	35	28	Three	1500rpm	70/65/55	1900×800×1050	850
YDSD35V	32	32	35	35	Single	1500rpm	70/65/55	1900×800×1050	880
YDSD44V3	40	32	44	35	Three	1500rpm	70/65/55	1900×800×1050	900
60Hz
YDSD10V	9	9	10	10	Single	1800rpm	70/65/55	1400×750×950	540
YDSD12V3	11	9	12	10	Three	1800rpm	70/65/55	1400×750×950	550
YDSD13V	12	12	13	13	Single	1800rpm	70/65/55	1500×750×950	600
YDSD16V3	15	12	16	13	Three	1800rpm	70/65/55	1500×750×950	620
YDSD18V	16	16	18	18	Single	1800rpm	70/65/55	1750×800×1050	680
YDSD22V3	19	16	22	18	Three	1800rpm	70/65/55	1750×800×1050	690
YDSD22V	20	20	22	22	Single	1800rpm	70/65/55	1750×800×1050	700
YDSD28V3	24	20	28	22	Three	1800rpm	70/65/55	1750×800×1050	720
YDSD26V	24	24	26	26	Single	1800rpm	70/65/55	1900×800×1050	830
YDSD32V3	30	24	32	26	Three	1800rpm	70/65/55	1900×800×1050	850
YDSD35V	32	32	35	35	Single	1800rpm	70/65/55	1900×800×1050	880
YDSD44V3	40	32	44	35	Three	1800rpm	70/65/55	1900×800×1050	900
