Portable Generator Set
Two Cylinder Diesel Genset
- Reliable and cost-effective power solution
- Silent Running
- Lightweight and compact structure
- Strong starting performance
- Able to switch between single phase and three phase
| Model | Structure | Phase No. | Power (kVA) | Dimension | ||||
| 50Hz | 60Hz | |||||||
| Rated | Max | Rated | Max | L*W*H (mm) | ||||
| Water-cooled | ||||||||
| YDE12E | Open frame | Single | 9 | 10 | 9.5 | 10.5 | 1035*605*660 | |
| YDE12E3 | Open frame | Three | 11 | 12 | 11.5 | 12.5 | 1035*605*660 | |

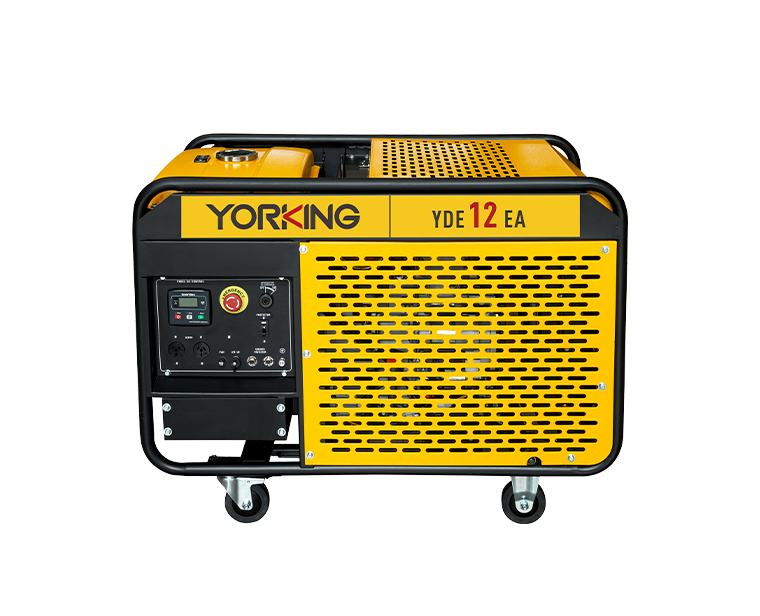

| YDE12EA | Open frame | Single | 9 | 10 | 9.5 | 10.5 | 1035*605*660 | |
| YDE12EA3 | Open frame | Three | 11 | 12 | 11.5 | 12.5 | 1035*605*660 | |
| YDE12T | Silent | Single | 9 | 10 | 9.5 | 10.5 | 1200*650*760 | |
| YDE12T3 | Silent | Three | 11 | 12 | 11.5 | 12.5 | 1200*650*760 | |
| YDE12TA | Silent | Single | 9 | 10 | 9.5 | 10.5 | 1200*650*760 | |
| YDE12TA3 | Silent | Three | 11 | 12 | 11.5 | 12.5 | 1200*650*760 | |
| YDE12TA-TA3 | Silent | Single/Three | 8.5@1P/10.5@3P | 9@1P/11@3P | 9@1P/11@3P | 10@1P/11@3P | 1200*650*760 | |
| YDE13TA | Silent | Single | 9 | 10 | 9.5 | 10.5 | 1200*650*760 | |
| YDE13TA3 | Silent | Three | 11 | 12 | 11.5 | 12.5 | 1200*650*760 | |

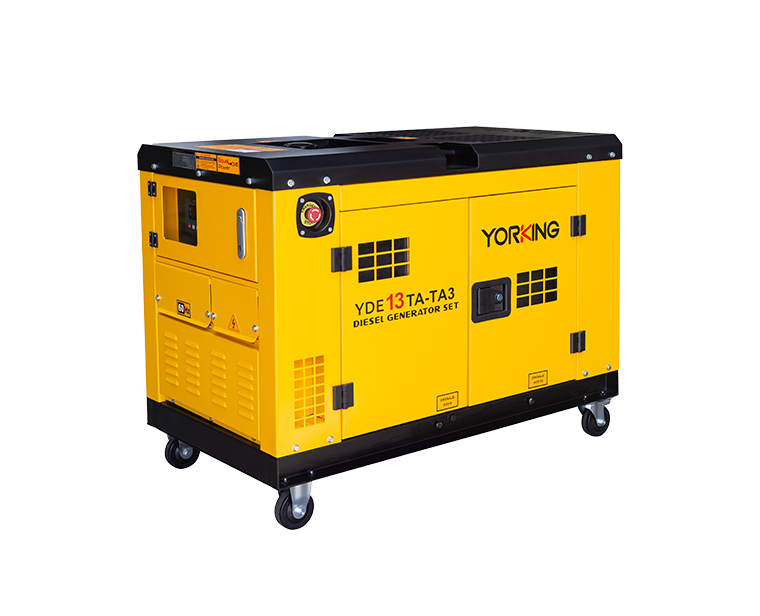

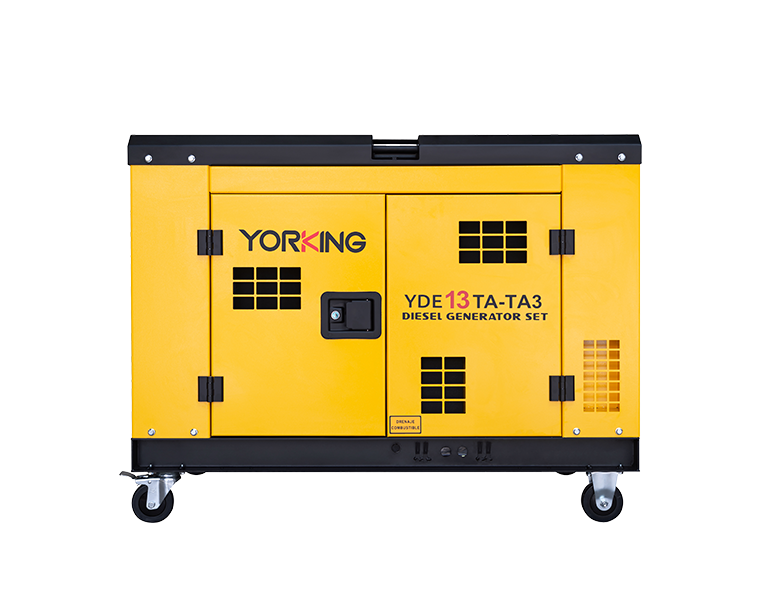

| YDE13TA-TA3 | Silent | Single/Three | 8.5@1P/10.5@3P | 9@1P/11@3P | 9@1P/11@3P | 10@1P/11@3P | 1200*650*760 | |
| Air-cooled | ||||||||
| YDE15000EA | Open frame | Single | 11 | 12 | 12 | 13 | 1000*630*700 | |
| YDE15000EA3 | Open frame | Three | 13 | 14 | 14 | 15 | 1000*630*700 | |
| YDE15000TA | Silent | Single | 11 | 12 | 12 | 13 | 1095*650*780 | |
| YDE15000TA3 | Silent | Three | 13 | 14 | 14 | 15 | 1095*650*780 | |
| YDE15000TA-TA3 | Silent | Single/Three | 10.5@1P/13.5@3P | 11@1P/14@3P | 11@1P/12@3P | 14@1P/15@3P | 1095*650*780 | |
