Portable Generator Set
Single Cylinder Diesel Genset
- Reliable and cost-effective power solution
- Silent Running
- Lightweight and compact structure
- Easy maintenance and operation
- Strong starting performance
| Model | Structure | Phase No. | Power (kVA) | Dimension | ||||
| 50Hz/3000rpm | 60Hz/3600rpm | |||||||
| Rated | Max | Rated | Max | L*W*H (mm) | ||||
| YDE6500X/E | Open frame | Single | 4.5 | 5 | 5 | 5.5 | 720*485*600 | |
| YDE6500E3 | Open frame | Three | 5.5 | 6 | 6.3 | 7 | 720*485*600 | |
| YDE6500T | Silent | Single | 4.5 | 5 | 4.5 | 5 | 933*525*685 | |
| YDE6500T3 | Silent | Three | 5.5 | 6 | 6.3 | 7 | 933*525*685 | |
| YDE6700T/TA/TD | Silent | Single | 4.5 | 5 | 4.5 | 5 | 915*525*685 | |
| YDE6700T3/TA3/TD3 | Silent | Three | 5.5 | 6 | 6.3 | 7 | 915*525*685 | |
| YDE6700T-T3 | Silent | Single/Three | 4.5@1P/5.5@3P | 5@1P/6@3P | 4.5@1P/5.5@3P | 5@1P/6@3P | 915*525*685 | |
| YDE7500E | Open frame | Single | 5 | 5.5 | 5.5 | 6 | 720*485*600 | |
| YDE7500E3 | Open frame | Three | 6.3 | 6.9 | 6.9 | 7.5 | 720*485*600 | |
| YDE7500T/TA/TD | Silent | Single | 5 | 5.5 | 5.5 | 6 | 915*525*685 | |
| YDE7500T3/TA3/TD3 | Silent | Three | 6.3 | 6.9 | 6.9 | 7.5 | 915*525*685 | |
| YDE7600T/TA/TD | Silent | Single | 5 | 5.5 | 5.5 | 6 | 955*525*680 | |
| YDE7600T3/TA3/TD3 | Silent | Three | 6.3 | 6.9 | 6.9 | 7.5 | 955*525*680 | |
| YDE7600T-T3 | Silent | Single/Three | 5@1P/6.3@3P | 5.5@1P/6.9@3P | 5@1P/6.3@3P | 5.5@1P/6.9@3P | 955*525*680 | |
| YDE7600TA-TA3 | Silent | Single/Three | 5@1P/6.3@3P | 5.5@1P/6.9@3P | 5@1P/6.3@3P | 5.5@1P/6.9@3P | 955*525*680 | |
| YDE8500E | Open frame | Single | 6 | 6.5 | 6.5 | 7 | 720*485*600 | |
| YDE8500E3 | Open frame | Three | 7.5 | 8 | 8 | 9 | 720*485*600 | |
| YDE8500T/TA/TD | Silent | Single | 6 | 6.5 | 6.5 | 7 | 960*525*685 | |
| YDE8500T3/TA3/TD3 | Silent | Three | 7.5 | 8.2 | 8.2 | 9 | 960*525*685 | |
| YDE8500T-T3 | Silent | Single/Three | 6@1P/7.5@3P | 6.5@1P/8.2@3P | 6.5@1P/8.2@3P | 7@1P/9@3P | 960*525*685 | |
| YDE8500TA-TA3 | Silent | Single/Three | 6@1P/7.5@3P | 6.5@1P/8.2@3P | 6.5@1P/8.2@3P | 7@1P/9@3P | 960*525*685 | |

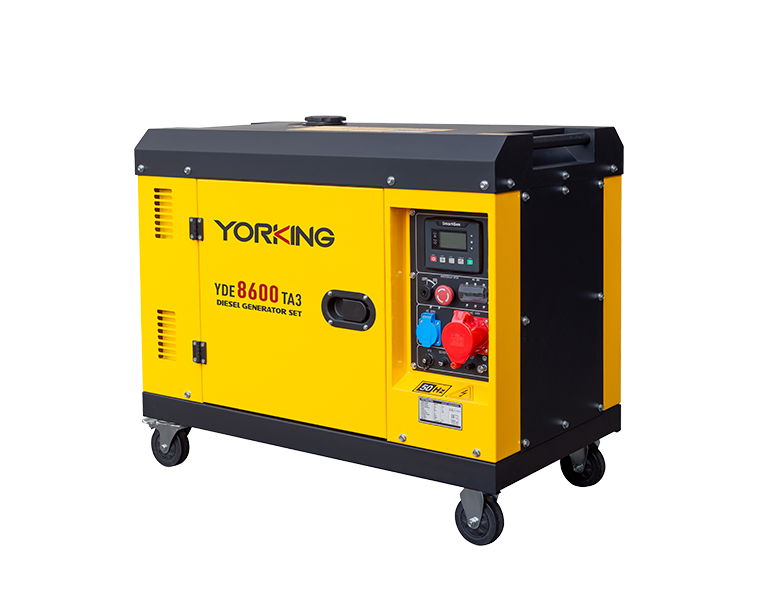

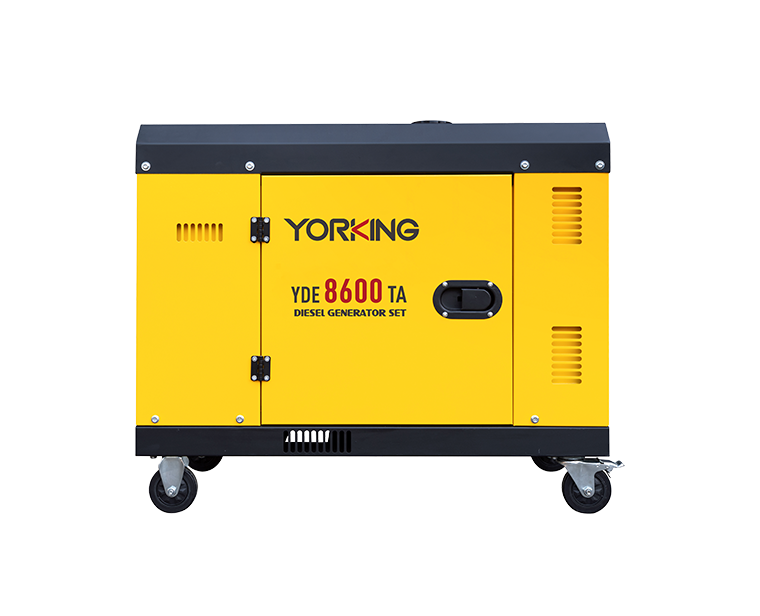

| YDE8600T/TA/TD | Silent | Single | 6 | 6.5 | 6.5 | 7 | 955*525*680 | |
| YDE8600T3/TA3/TD3 | Silent | Three | 7.5 | 8.2 | 8.2 | 9 | 955*525*680 | |
| YDE8600T-T3 | Silent | Single/Three | 5.5@1P/6.9@3P | 6@1P/7.5@3P | 5.5@1P/6.9@3P | 6@1P/7.5@3P | 955*525*680 | |
| YDE8600TA-TA3 | Silent | Single/Three | 5.5@1P/6.9@3P | 6@1P/7.5@3P | 5.5@1P/6.9@3P | 6@1P/7.5@3P | 955*525*680 | |
| YDE11000E | Open frame | Single | 7.5 | 8 | N/A | N/A | 805*610*775 | |
| YDE11000E3 | Open frame | Three | 9.4 | 10 | N/A | N/A | 805*610*775 | |
| YDE11000T/TA/TD | Silent | Single | 7.5 | 8 | N/A | N/A | 1100*600*720 | |
| YDE11000T3/TA3/TD3 | Silent | Three | 9.4 | 10 | N/A | N/A | 1100*600*720 | |
